本機簡介:

◎ 本機由送紙部、印刷部、烘干部、上光油部、開槽部、模切部六部分組成并可根據用戶生產情況隨意組合。

◎ 本機可以與紙板上料機、聯動線、自動捆扎機、碼垛機組成全PLC控制生產流水線，或者與接料機、邊角清除機組成普通全自動生產流水線。

◎ 送紙部采用前緣送紙系統，也可選擇伺服前緣送紙系統。

◎ 進紙方式可選擇無軸進紙或有軸進紙。

◎ 配有高壓吸塵、靜電除塵、毛刷或毛刷軸三級除塵系統。

◎ 網紋輥可配膠輥或刮刀兩種上墨方式，并且可快裝組合。

◎ 傳動齒輪采用優質合金鋼，滲碳淬火后精磨制造。

◎ 齒輪采用噴淋潤滑和潤滑脂集中供油潤滑系統，并具備油路平衡功能。

◎ 整機PLC控制。

◎ 除觸摸屏控制以外，其他各項功能配有備份按鈕。

◎ 雙級人機保護。

◎ 具有一鍵洗墨功能，并自動停機，不需人員跟蹤，可節墨(機器殘留墨) 75%。

◎ 采用機組無觸摸屏設計，在機器前、后端就可操作整機.

◎ 本機具有開槽、模切雙層功能。

◎ 具備開槽、模切、雙拼箱三個模塊，均可一鍵成型。

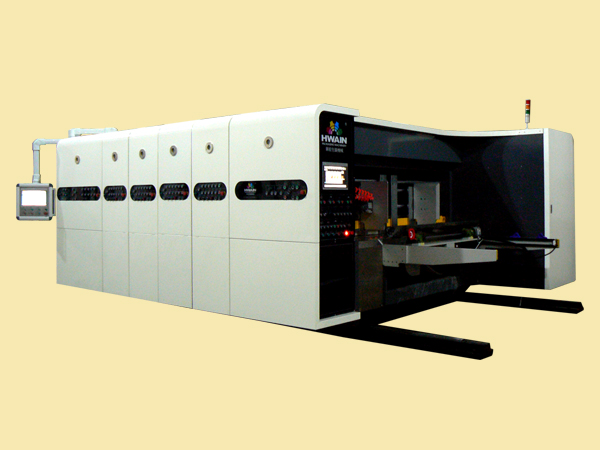

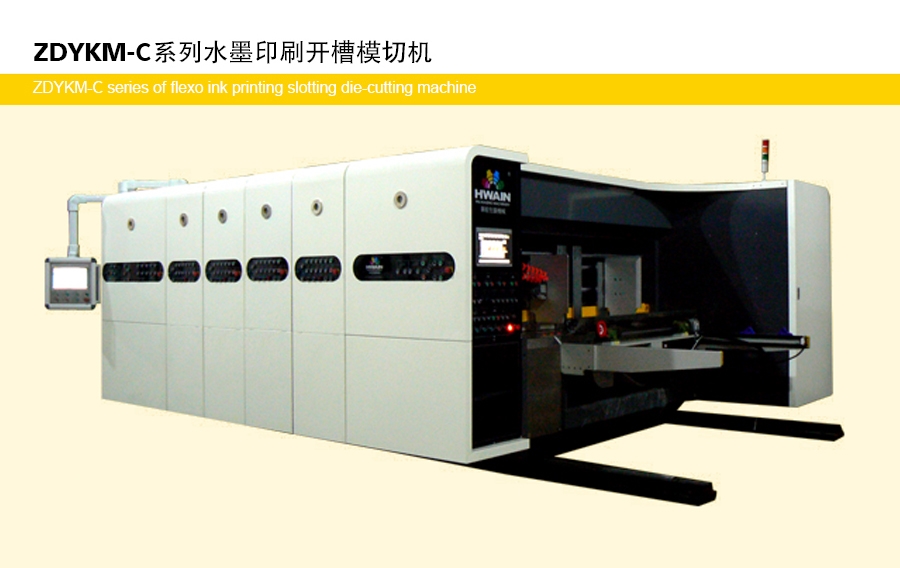

Brief Introduction:

◎ This machine is composed of six units, which are feeding unit, printing unit, drying unit, varnish unit, slotting unit, die cutting unit and it can be freely combined according to user’s production situation.

◎ This machine can make up a full PLC control production line with cardboard feeder, binding line, automatic strapper, stacker or make  up normal automatic production line with stacker, corner cleaner machine.

◎ Feeding unit adopts lead edge feeder or servo lead edge feeder.

◎ The feeding adopts without shaft feeding or shaft feeding.

◎ Equipped with high pressure vacuum device, electrostatic dust, brush or brush shaft three stage dust removal system.

◎ Anilox roller can be equipped with rubber roller and doctor blade two ways of supplying inking, and be quickly combined.

◎ Transmission gear adopts high quality alloy steel, fine grinding is manufactured after carburizing and quenching.

◎ Gear adopts spray lubrication and lubricating grease centralized oil supplied lubricating system, and has oil line balance function.

◎ PLC control of the whole machine.

◎ In addition to touch screen control, other functions are equipped with Backup button.

◎ Two level man-machine protection.

◎ With one key ink washing function and automatic shutdown, it can save 75% ink (machine

residual ink) without personnel tracking.

◎ No touch screen design of the unit is adopted, and the whole machine can be operated in

front and back of the machine.

◎ This machine has double functions of slotting and die cutting.

◎ With three modules of slotting, die-cutting and double split box, it can be formed by one key.

技術參數 Specification:
